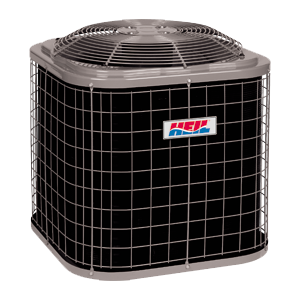

The painted, galvanized steel cabinet features a powder-coat, baked-on finish and a coated inlet grille with narrower spacing to provide maximum protection as it allows for proper airflow and easy coil cleaning.
| MODEL | Cooling Cap. MBtuH | SEER | Refrigerant Charge Oz. | Line Size | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|
| N4A318AKC | 18.0 | 13.0 | 56 | 3/8-3/4 | 25.3x23.5x23.5 | 107 |
| N4A324AKC | 24.0 | 13.0 | 61 | 3/8-3/4 | 25.3x23.5x23.5 | 110 |
| N4A330AKC | 30.0 | 13.0 | 66 | 3/8-3/4 | 28.9x23.5x23.5 | 111 |
| N4A336AKB | 36.0 | 13.0 | 85 | 3/8-7/8 | 31.9x25.75x25.75 | 141 |
| N4A342AKA | 42.0 | 13.0 | 93 | 3/8-3/4 | 32.4x31.2x31.2 | 180 |
| N4A348AKB | 48.0 | 13.0 | 112 | 3/8-3/4 | 35.75x31.2x31.2 | 179 |
| N4A360AKC | 60.0 | 13.0 | 131 | 3/8-1-1/8 | 25.5x31.2x31.2 | 184 |
